HYBRID 60 & 120
These programmable LED film lighting tube fixtures offer a whole new range of possibilities for lighting designers and technicians with their high output and extremely low profile. They are easy to rig and have a clean, efficient menu system. These are the solution needed for many large-scale movie sets and fast paced corporate interviews that require clean, simple white light.
They are easy to rig, scalable, and outputs a market leading level of both color quality and brightness for white and warm light.
All models include a variable white light color temperature range of 2700-6500K, an easy-to-use onboard control interface, and wired DMX512 control. Constant current drive enables a smooth dimming range from 0% to 100%, allowing the tube to be flicker-free at any frame rate
The removable battery pack can be operated wirelessly and can be easily replaced to power you all day long. DC input 10-24VDC.
24V DC input, maximum power 20W for P60 and 40W for P120, light efficiency > 90lm/W
Can be manually set independently for color temperature and strength.
P60: Φ43 x 600 mm & P120: Φ43 x 600 mm
Hybrid series LED fluorescent lamps、
Technical indicators
16000mAh lithium ion rechargeable battery pack
DMX512 addresses, and multiple combinations of DMX addresses can be set for multiple connections.
H60 Package Dimension L x W x H:
26" X 4.7" X 3.35" / 66.5cm x 12cm x 8.5cm
Product Weight:
4.4lbs / 2 kg
H120 Package Dimension L x W x H:
50.2" X 4.7" X 3.35" / 127.5cm x 12cm x 8.5cm
Product Weight:
6.4lbs / 2.9 kg
For help with SGC Hybrid 60 and 120, please visit our support page
Models： |
H60 |
H120 |
|
Optics: |
White Diffuser |
|
|
Beam Angle: |
150° |
|
|
Color Temperature: |
2700K-6500K |
|
|
Color Temperature Tolerances: |
±100K |
|
|
Color Accuracy Standard: |
CRI＞97, TLCT＞99， |
|
|
Power Input Range: |
DC 10~24V |
|
|
Power Consumption: |
20W |
40W |
|
Power Port: |
DC input, 2.5*5.5mm barrel connector |
|
|
Lumens (@6000K): |
2300 lm |
4600 lm |
|
Dimming: |
0-100% |
|
|
Software Interface: |
On-board Controller with Display |
|
|
IP Rating: |
IP50 |
|
|
Operational Temperature: |
-20 - 40℃ |
|
|

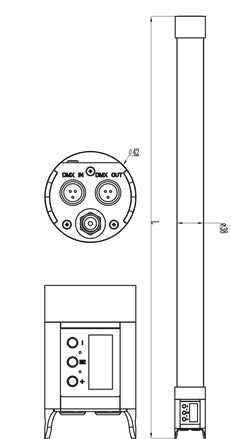

Fixture Dimensions: |
Φ43×600mm |
Φ43×1200mm |
|
Fixture Weight: |
0.7kg |
1.38kg |
|
Battery Capacity: |
16000mAh |
32000mAh |
|
Battery Pack Charging Life: |
Expected battery pack capacity after 300 charging cycles: >70% |
|
|
Expected Lamp Life: |
25000 Hours |
|
|
Controls: |
Manual on-board control, Wired DMX |
|
|
Mounting: |
Q-Block Mount & T12 Mount |
|
