Designed to deliver maximum creative control, the SGC PRISM PLUS+ LED tube is the ultimate lighting solution with all the core qualities lighting professionals need and expect in four different lengths: 1’, 2’, 4’ and 8’. Superior color quality is coupled with essential built-in programmable effects, smooth flicker free dimming, color mixing and multi-pixelation control via on-board menu, Bluetooth, WiFi, Blackout wireless DMX app or CRMX Lumen Radio.

Built with a rugged aircraft quality aluminum housing and metal end caps, PRISM PLUS+ tubes withstand travel and tough rental environments and come in a variety of kits.

The proprietary removable internal battery design allows extra batteries to be kept on charge and swapped out instead of swapping out the entire tube.

The rear facing local controller keeps the on-board menu out of sight for in-sight shots and is also removable allowing the end user to switch control modules if so desired.

Multiple mounting hardware components are included with each tube for creative and convenient rigging. All this comes together at pricing to fit all budgets with customer service and product support in the USA.

Sizes, Color & Output

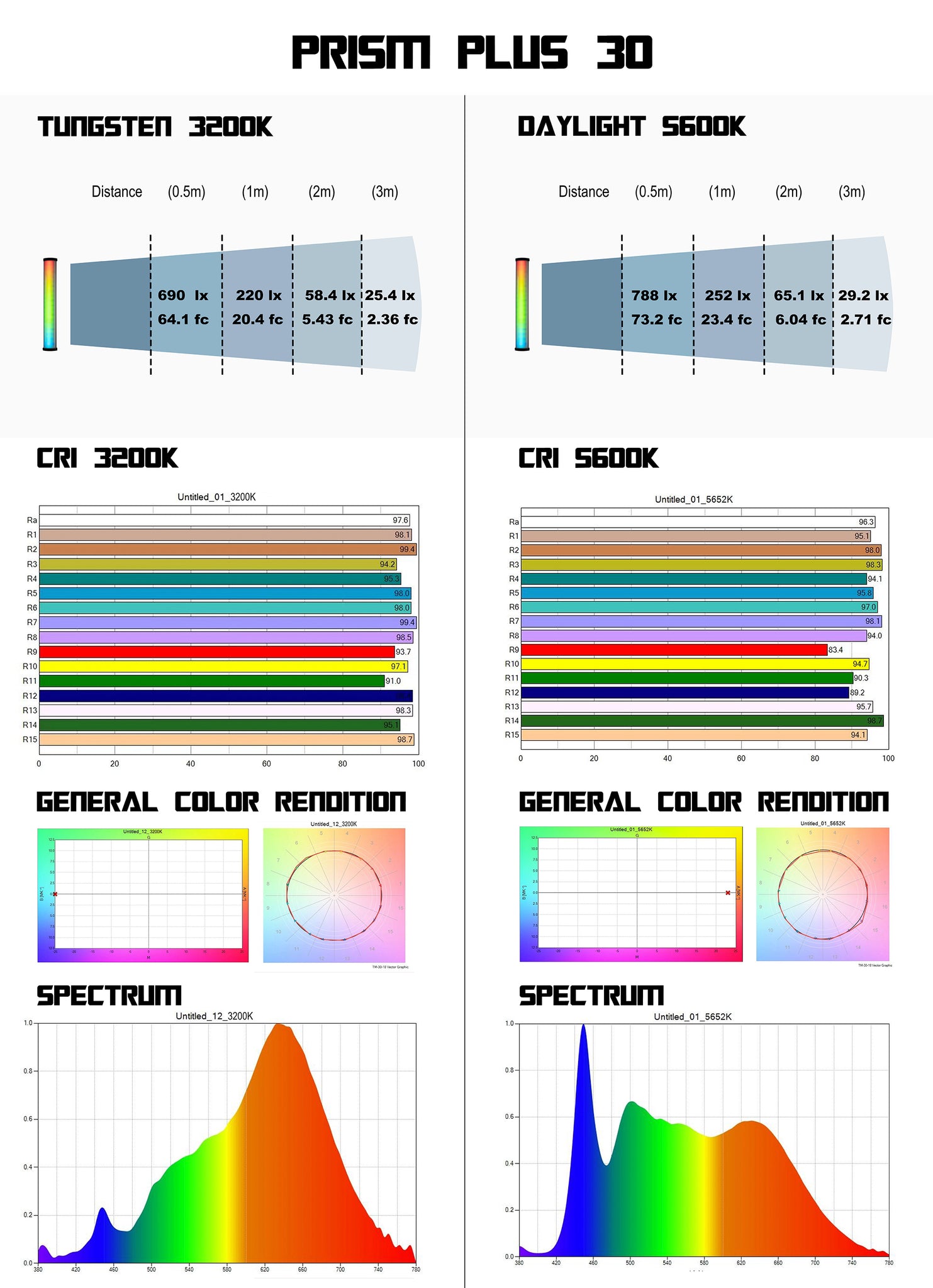

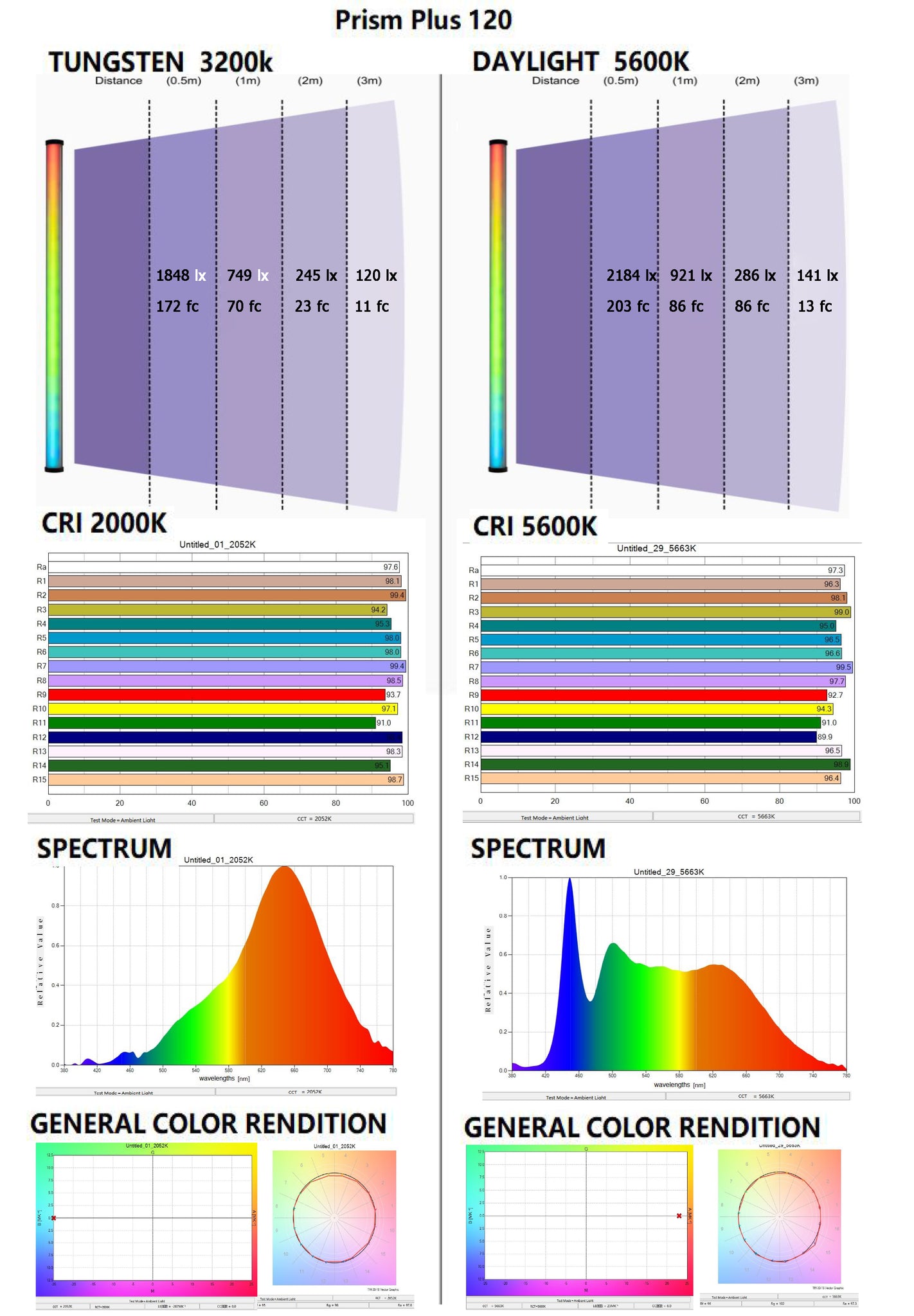

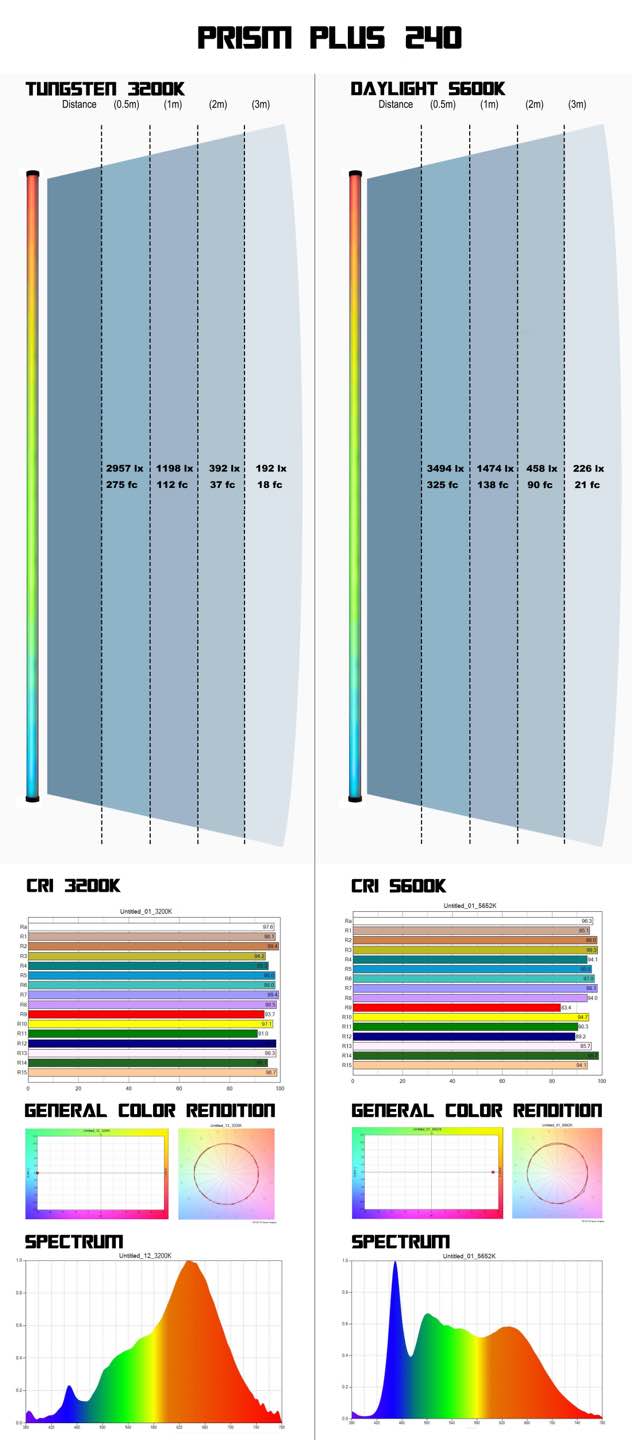

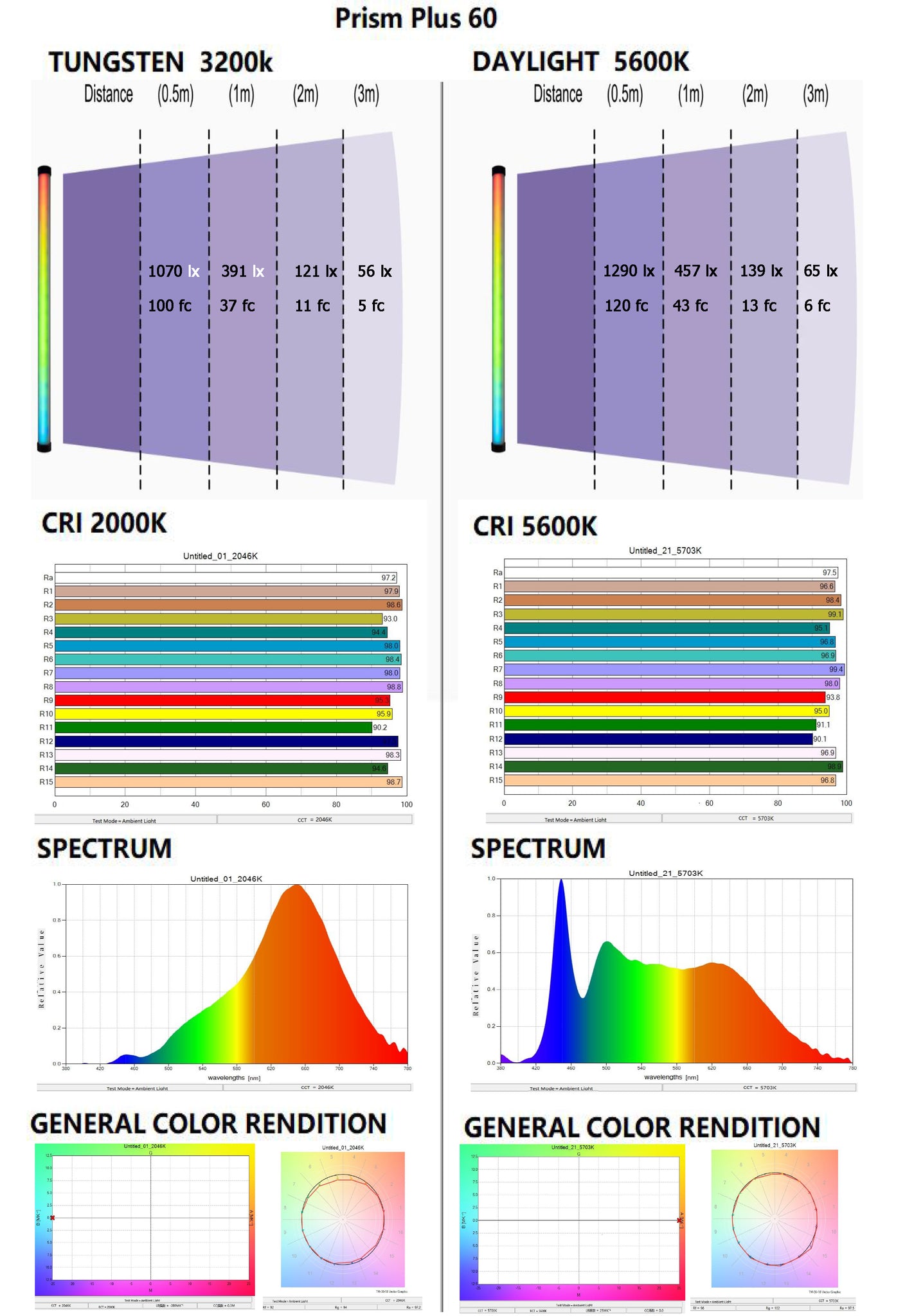

Four lengths in standard T12 diameter make the PRISM PLUS+ the best option for filling any need where an LED tube is needed. Beautifully saturated colors are fully animated with the most pixels found in any single row LED tube. Individually CIE1931 calibrated lamps result in 100% color consistency and accurate RGBWW color reproduction for brilliant whites, green / magenta control and X/Y coordinating.

Innovative Power System

Universal 90 – 240 VAC is available for each tube via a 24V USB-C plug makes it easy to plug the PRISM PLUS+ LED tube anywhere in the world. The patent pending removable internal Li-Ion battery design allows extra batteries to be kept on charge and swapped out instead of swapping out the entire tube. Now with the PRISM PLUS+, extra tubes aren’t need as a backup, only extra batteries.

Wireless, Connectivity & Local Control

Performance starts with control and the PRISM PLUS+ gives you plenty of it. Rear facing & swappable modules give you full control over all available features for quick, local adjustments.

Optional DMX Adapter with RJ45 ethernet connectors for hardline DMX daisy chaining are on each tube.

Wireless options give you even more flexibility with Bluetooth access, universal 2.4 Ghz Wifi, sACN and ArtNet providing a pathway for use in wireless lead-follow displays, Blackout Wireless DMX app or CRMX Lumen Radio.

Mounting & Kits

Beautiful lighting all comes back to the nuts and bolts – the mounting hardware. The grip. Being able to physically move and position your PRISM PLUS+ tubes is the key to unlocking that final ounce of capability.

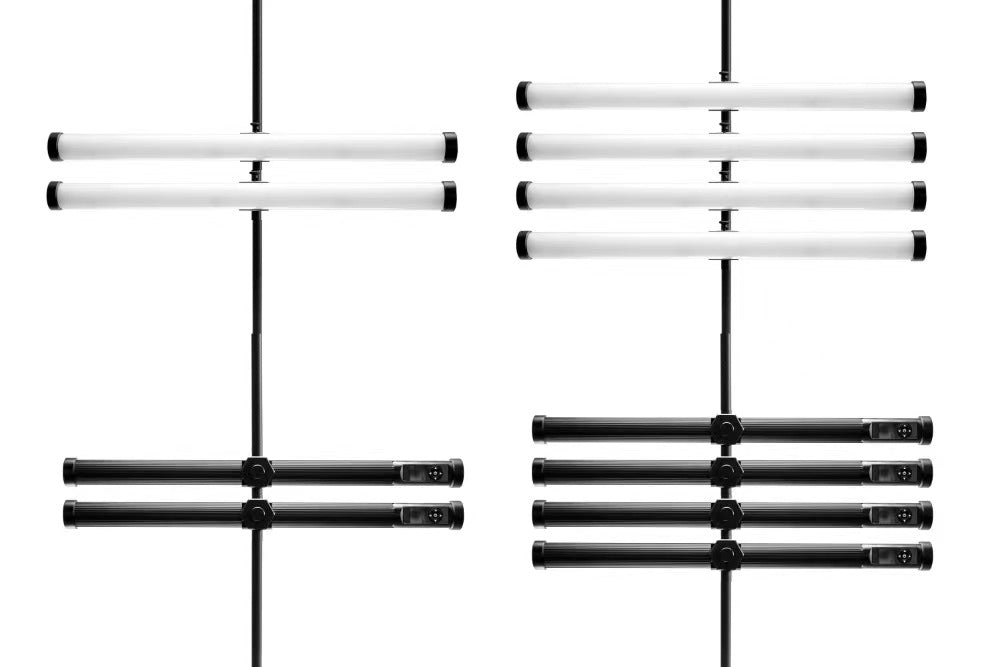

PRISM PLUS+ sets are available in Single and Dual varieties. Deluxe kits built for travel are the Gaffer (Quad) kit and the Rental (Eight) kit.

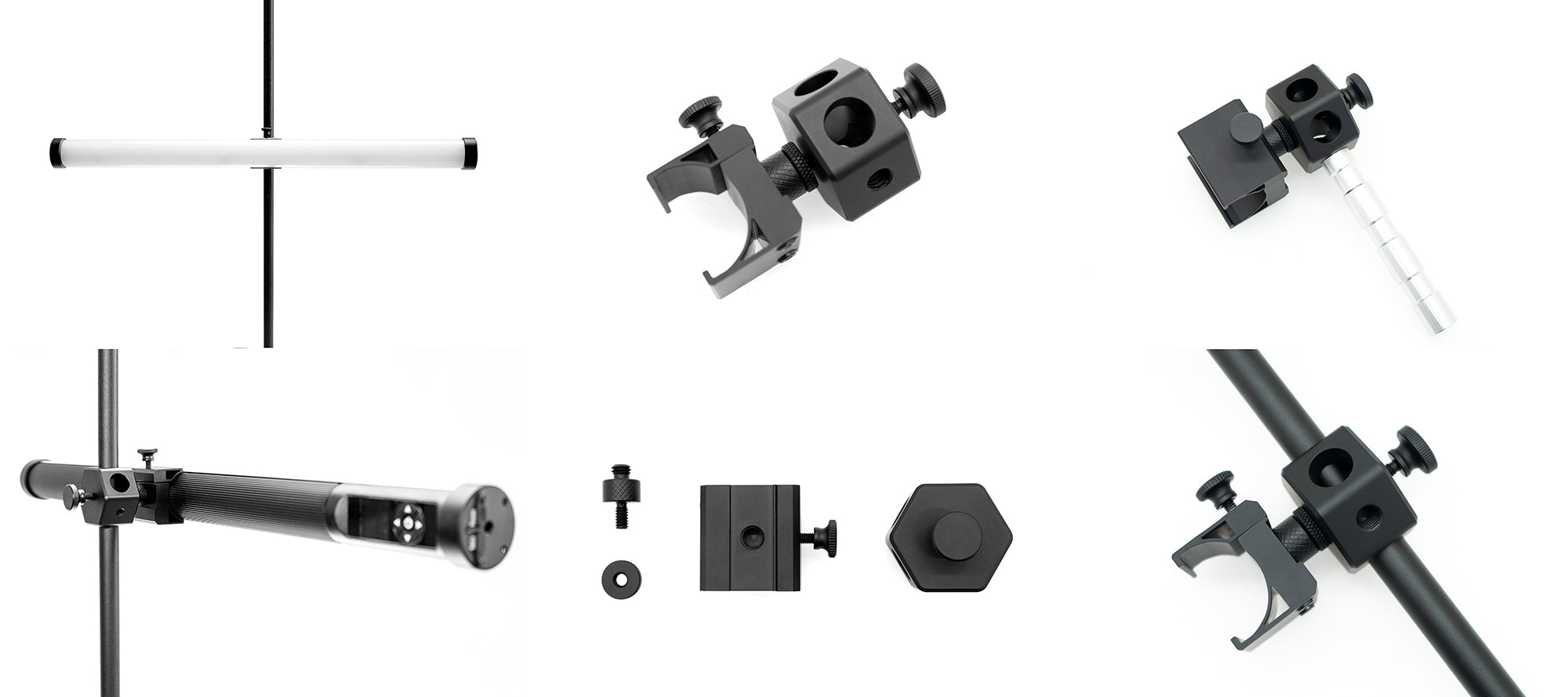

All sets include stackable Q-Block plates and C-Stand adapters that can be assembled to make single, double, triple or quad fixture plates.

Gaffer and Rental Kits include floor stands for every tube in the kit as well as the Q-Block plates and C-Stand adapters. You also get 9.Solutions stand sets and external battery chargers with custom foam cutout weather-proof travel cases.

Magnet Clips exclusively designed by SGC and tube sizes that fit perfectly into legacy fixture frames give you that last bit of rigging flexibility.

Prism Plus 30  Package Dimension L x W x H:

14" X 4.7" X 3.35" / 35cm x 12cm x 8.5cm

Product Weight:

3.52lbs / 1.6 kg

Prism Plus 60 Package Dimension L x W x H:

26" X 4.7" X 3.35" / 66.5cm x 12cm x 8.5cm

Product Weight:

4.62lbs / 2.1 kg

Prism Plus 120 Package Dimension L x W x H:

50.2" X 4.7" X 3.35" / 127.5cm x 12cm x 8.5cm

Product Weight:

6.83lbs / 3.1 kg

Prism Plus 240 Package Dimension L x W x H:

98.4" X 4.7" X 3.35" / 250 cm x 12cm x 8.5cm

Product Weight:

14.33lbs / 6.5 kg
